ADX-MINI Bare PCB

ADX MINI Bare PCBs – 3 Pack Set (Top, Main & Bottom Boards)

The ADX MINI Bare PCB set is a complete 3-board mechanical and functional platform designed for RF and ADX system builds. Supplied as a matched set of three PCBs, this kit includes the Top Board, Main Board, and Bottom Board, forming the full structural and electronic foundation of the MINI system.

Each board is manufactured for precise alignment and clean integration when assembled, ensuring reliable performance and a professional finished build. The modular design allows builders to construct a robust layered system that supports RF circuitry, filtering, and control integration depending on the project configuration.

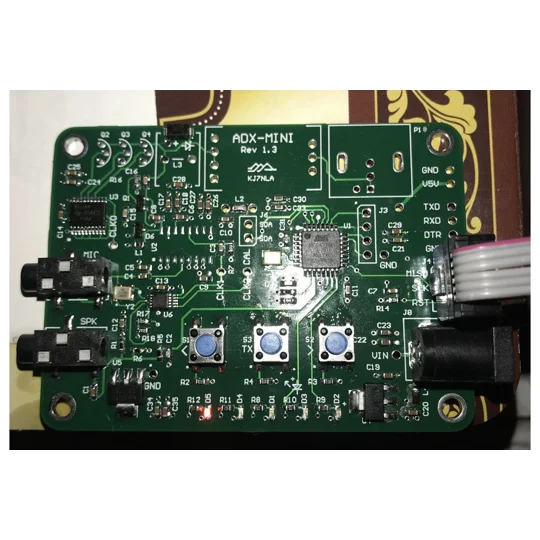

This set is supplied as bare PCBs only, intended for experienced builders or custom RF projects. The assembled structure shown in product images demonstrates the final form once all three boards are stacked and mounted together.

The MINI PCB system is designed for flexibility, durability, and clean RF layout separation, making it suitable for high-performance radio and electronics applications.

Key Features
Complete 3 PCB set: Top, Main, and Bottom boards
Designed for ADX MINI system architecture
Precision-aligned layered PCB construction
Optimized for RF and electronics integration
Shown in assembled configuration for reference
Supplied as bare PCBs (no components included)
Ideal for custom builds and advanced users
