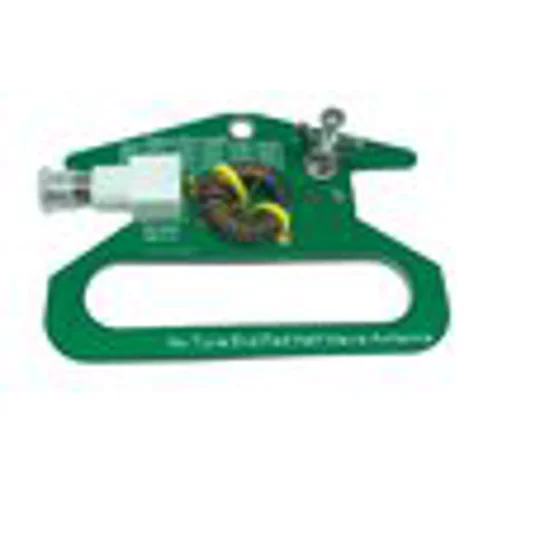

Portable End Fed Half Wave Antenna PCB Set, 50ohm

No Tune End Fed Half Wave Antenna Module – PCB Type (10W)

The No Tune End Fed Half Wave Antenna Module is a compact, efficient antenna solution designed for ham radio and RF enthusiasts who require a simple, reliable, and no-adjustment antenna system. Built on a high-quality PCB structure, this module delivers stable performance with excellent durability and ease of installation.

Constructed from premium 1.6mm double-sided PCB material, the antenna ensures long-lasting mechanical strength and electrical stability. The fully tinned surface improves conductivity and enhances current handling capability, allowing both low and moderate RF power levels to pass efficiently through the design.

The smooth, one-piece PCB layout eliminates burrs and sharp edges, making installation quick, safe, and straightforward—even for beginners. Its compact structure also simplifies integration into portable or fixed station setups.

A carefully designed large-area copper layout provides improved heat dissipation, helping maintain stable performance during extended transmission periods. This ensures consistent operation without thermal issues under normal use conditions.

With a 50-ohm impedance design, the antenna module is optimized for efficient RF transfer and reliable signal performance across supported bands.

---

Specifications

• Type: No Tune End Fed Half Wave Antenna
• Material: 1.6mm double-sided PCB
• Impedance: 50 Ohms
• Rated Power: 10W RF (maximum)

---

Key Features

• High-quality 1.6mm PCB construction for durability
• No tuning required – simple plug-and-play design
• Fully tinned PCB for improved current handling
• Smooth one-piece layout for easy installation
• Efficient heat dissipation design
• Stable performance for amateur radio use
• Compact and lightweight antenna solution

---

Important Note

Do not exceed 10W RF power. Overloading may damage the antenna module.

---

Package Includes

• 1 × No Tune End Fed Half Wave Antenna Module (PCB type)
