ESP32 SI4732 RX V7.8 – Advanced Multi-Band DSP Receiver (IU4ALH Design)

The ESP32 SI4732 RX V7.8 is a modern, high-performance multi-band digital DSP radio receiver based on the ESP32 microcontroller and the Silicon Labs SI4732/4735 radio chipset. Developed by IU4ALH, this version represents a refined evolution of compact software-defined radio (SDR)-style receivers, combining powerful digital processing with intuitive user control and wideband reception capability.

This receiver is designed for AM, FM, shortwave (HF), and SSB reception, making it a highly versatile platform for amateur radio enthusiasts, shortwave listeners, and RF experimenters.

At the core of the system is the SI4732 DSP radio IC, which provides excellent sensitivity, selectivity, and low-noise performance across multiple frequency bands. The ESP32 microcontroller handles user interface control, display management, frequency tuning, memory storage, and advanced features such as scanning and mode switching.

Version V7.8 includes a refined firmware interface with improved stability, enhanced tuning response, and optimized audio handling. The system typically includes a color TFT display, rotary encoder tuning, and onboard audio amplification, making it a fully integrated portable receiver.

The architecture is based on the widely adopted ATS-style receiver ecosystem, known for combining modern embedded systems with high-quality RF performance in a compact form factor. The design is open-source influenced and shares lineage with popular ESP32 SI4732 receiver projects used in the global amateur radio community.

---

Key Features

• ESP32-based digital radio control system
• SI4732/SI4735 DSP receiver IC
• Wideband reception: AM / FM / SW / SSB
• High-sensitivity multi-band HF receiver
• TFT display interface (model dependent)
• Rotary encoder tuning control
• Firmware V7.8 optimized UI and stability
• Built-in audio processing and amplification
• Station scanning and memory presets
• Portable low-power design

---

Performance Overview

The SI4732 DSP chipset provides strong real-world performance in compact receivers, offering:

• Excellent sensitivity for weak HF signals
• Stable demodulation for SSB and AM
• Low-noise digital filtering
• Fast tuning response with minimal drift
• Reliable performance with wire or telescopic antennas

Combined with ESP32 processing, the system offers a smooth user experience with fast tuning, menu navigation, and real-time frequency control.

---

Applications

• Shortwave listening (SWL)
• Amateur radio HF monitoring
• Broadcast band reception (AM/FM)
• SSB utility and ham band listening
• Portable RF experimentation
• Educational SDR/DSP receiver platform

---

System Overview

The ESP32 SI4732 RX operates as a software-defined radio-style receiver, where:

• SI4732 handles RF demodulation and signal processing
• ESP32 manages UI, tuning, memory, and control logic
• Display provides real-time frequency and signal information
• Audio output is processed through onboard amplification

This separation allows excellent performance in a compact and efficient design.

---

What’s Included

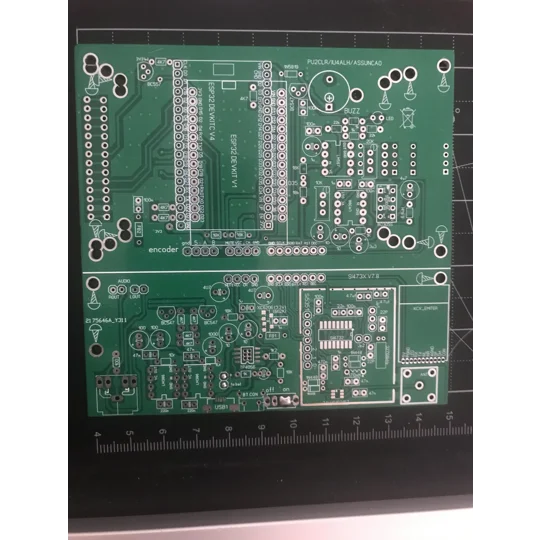

• ESP32 SI4732 RX V7.8 receiver board (IU4ALH design variant)
• Preloaded firmware (version dependent)
• Display and control interface (if included in build)
• Basic documentation / setup guidance
