ESP32_SI4735_RX

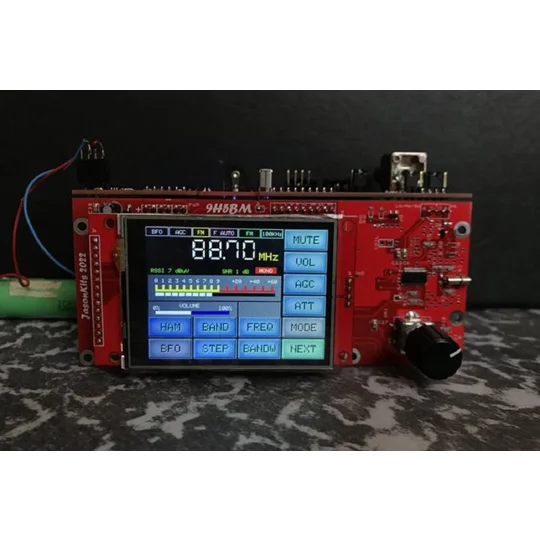

ESP32 SI4735 RX – Advanced Multi-Band Radio Receiver

The ESP32 SI4735 RX is a powerful, compact, and feature-rich multi-band radio receiver combining the flexibility of the ESP32 platform with the high-performance SI4735 DSP radio chipset. Designed for both enthusiasts and advanced users, this receiver delivers excellent reception across multiple bands with a modern user interface and extensive functionality.

---

Overview

At the heart of the design is the SI4735, a highly integrated DSP-based receiver capable of receiving AM, FM, and Shortwave (SW) signals with outstanding sensitivity and selectivity. Paired with the ESP32, the system provides a responsive interface, enhanced control, and advanced features such as digital signal processing, memory management, and display visualization.

The receiver features a user-friendly interface with a TFT display, rotary encoder tuning, and intuitive menu navigation, making it suitable for both casual listening and technical exploration.

---

Key Features

• Multi-Band Coverage:
  • FM Broadcast
  • AM (MW/LW)
  • Shortwave (SW)
• High-Performance DSP Receiver (SI4735):
  • Excellent sensitivity and selectivity
  • Integrated demodulation and filtering
  • Built-in AGC and noise reduction
• ESP32 Control Platform:
  • Fast and responsive operation
  • Flexible firmware
  • Advanced feature integration

---

User Interface & Controls

• TFT Display for frequency, signal strength, and menu system
• Rotary Encoder for smooth and precise tuning
• Touch Screen Menu -for band selection and navigation
• Structured and easy-to-use menu system for radio settings

---

Audio & Connectivity

• Built-in Audio Amplifier to drive a speaker
• Headphone Output for private listening
• Clean and stable audio with DSP filtering
• Pre-Amp and external antenna support for improved reception

---

Advanced Capabilities

• SSB Support (if enabled in firmware)
  Enables reception of amateur radio, utility, and aviation signals
• Station Memory
  Store and quickly recall favorite frequencies

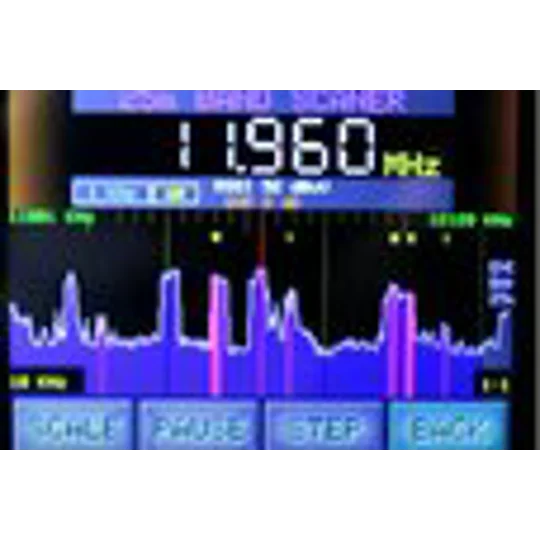

• Automatic Band Scanning
  Easily explore available stations
• Digital Display Information
  Real-time signal strength, frequency, and mode

---

Performance

The SI4735-based architecture ensures stable and reliable reception even in challenging RF environments. Combined with proper antenna setup, the receiver delivers strong performance across all supported bands.

---

Power & Consumption

• Powered via 9-12V supply (Power brick or Lipo Battery)
• Optimized for low power consumption
• Suitable for portable and desktop use

---

What’s Included

• Fully assembled and tested ESP32 SI4735 RX board
• TFT display (pre-installed)
• Controls (rotary encoder and Touch Screen Buttons)

---

Applications

• General radio listening (FM/AM/SW)
• Amateur radio monitoring
• Shortwave exploration
• Educational and RF experimentation
• Portable radio projects

---

The ESP32 SI4735 RX is a modern, all-in-one radio solution that combines ease of use with powerful DSP performance, making it ideal for both beginners and experienced radio enthusiasts looking for a compact and capable receiver.
