NaNO VNA Test Board

Test Board for VNA

What is it?

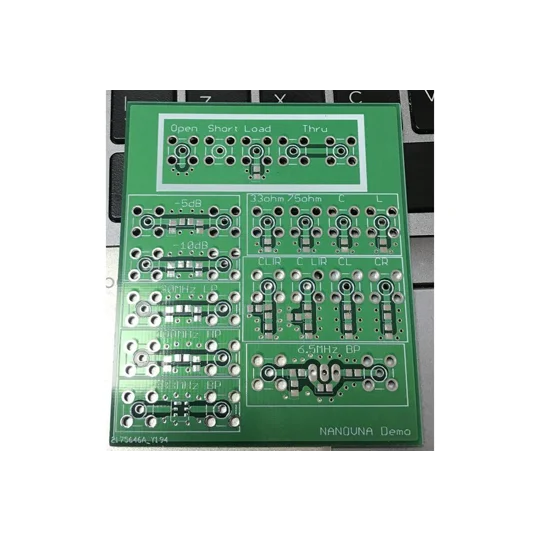

This board carries most common circuits found in R.F . It consists of a board which can accommodate 18 tests.

Why did you make it?

I needed such board to test the nano vna capabilities. Also stop from using the connectors that come with nanovna.

What makes it special?

The board Hosts the following setup

1: Open Test

2: Sh ort Test

3: Load Test

4: Through Test

5: 33 ohm resistor test

6: 75 ohm resistor test

7: Capacitor test

8: Inductor test

9: -5db attenuator

10: -10db attenuator

11: 30Mhz Low pass Filter

12: 100Mhz High Pass Filter

13: 433Mhz Band Pass Filter

14: 6.5Mhz Band Pass Filter

15: Capacitor Inductor Resistor test

16: Capacitor Resistor Inductor test

17: Capacitor Inductor test

18: Capacitor Resistor test

Supplied as Bare unpopulated PCB with instructions.
