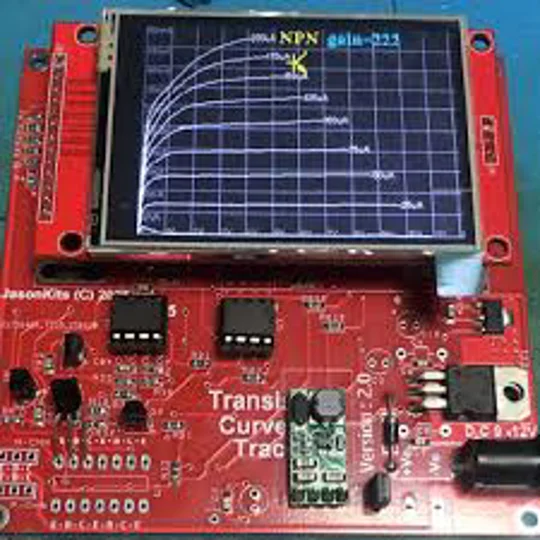

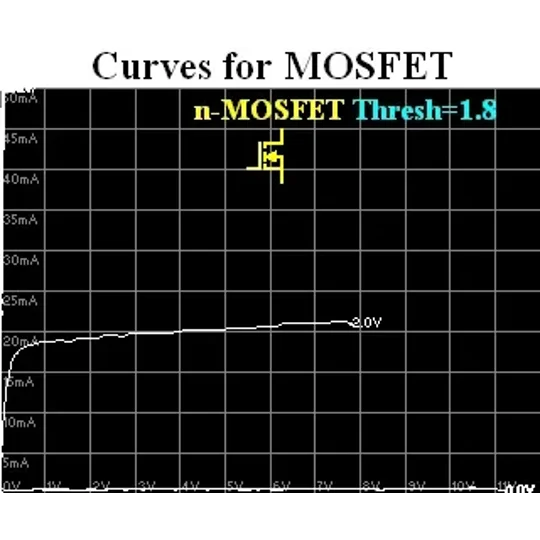

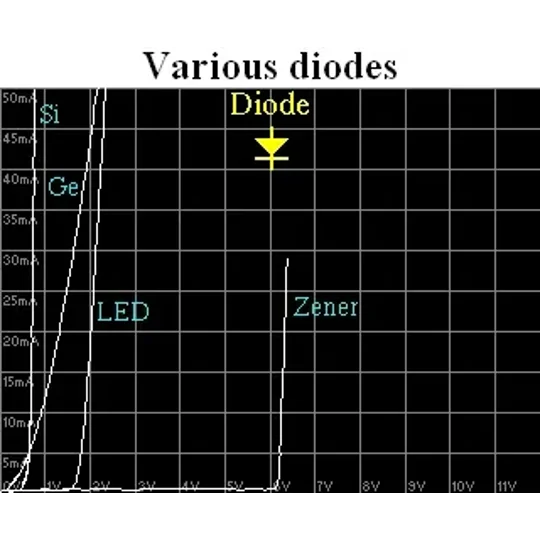

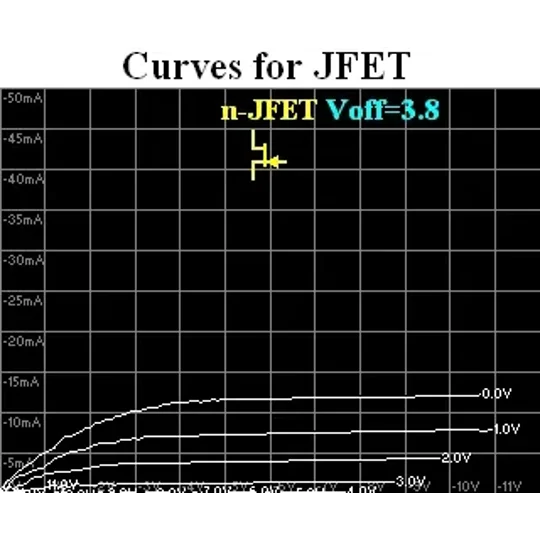

Compact Transistor Curve Tracer Tester with 2.8" TFT touch display for analyzing and displaying transistor characteristics. Supports testing and matching of transistors, MOSFET threshold measurement, JFET cutoff, diode forward voltage, and Zener breakdown. Supplied fully assembled, tested, and ready to use. Operates on 9 12V DC with serial output support.
This versatile Transistor Curve Tracer Tester is designed to display the electrical characteristics of the transistor under test in a clear and intuitive way using a built-in TFT touch display. It is an essential tool for electronics enthusiasts, hobbyists, and professionals working with semiconductor devices.
Beyond basic transistor analysis, the unit supports a wide range of component testing and measurement functions, making it a powerful addition to any workbench.
This compact and easy-to-use tester simplifies component analysis and helps speed up development, troubleshooting, and matching tasks in both analog and digital electronics.
| Title | Transistor Curve Tracer |
|---|---|
| Category | Test Equipment |
| SKU | smO9LEM |
| Condition | new |
| Weight | 110.0 g |
