UNI BALUN PCB

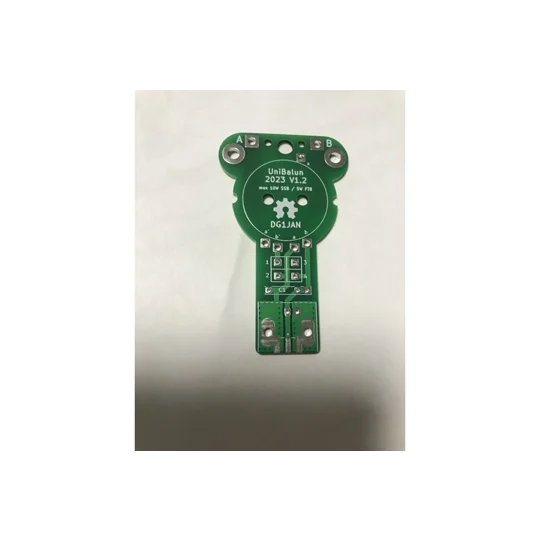

UniBalun PCB Kit – Multi-Configuration HF Balun / UnUn Platform

The UniBalun PCB Kit by DG1JAN is a versatile and lightweight antenna matching platform designed for QRP and HF amateur radio applications. This PCB allows builders to construct multiple types of RF impedance transformers, including Baluns and UnUns, depending on the winding configuration and jumper settings.

The design supports a wide range of configurations such as 1:1 and 1:4 Balun, as well as 1:9, 1:49, and other impedance ratios UnUn systems, making it highly flexible for different antenna types including end-fed half-wave (EFHW), random wire, off-center-fed dipoles (OCFD), and vertical antennas.

Built with portability and efficiency in mind, the UniBalun PCB is ideal for SOTA, portable field operation, and compact station setups. The PCB includes clearly defined pads for toroid winding, capacitor placement, and optional BNC or SMA connector mounting depending on build preference.

By using different jumper configurations and winding methods, the same PCB can be adapted into multiple RF transformer types, reducing the need for multiple separate balun designs.

This kit is especially popular among amateur radio operators who want a lightweight, modular, and customizable antenna matching solution.

---

Key Features

• Multi-function PCB for Balun and UnUn construction
• Supports 1:1, 1:4 Balun configurations
• Supports 1:9, 1:49, and other UnUn impedance ratios
• Suitable for EFHW, random wire, OCFD, and vertical antennas
• Designed for QRP HF operation (portable and fixed station use)
• Lightweight and compact PCB format
• Configurable via jumper pads and winding method
• Supports BNC or SMA connector integration (depending on build)
• Ideal for SOTA / portable amateur radio use

---

Applications

• End Fed Half Wave (EFHW) antennas
• Random wire antenna systems
• Off-Centre Fed Dipoles (OCFD)
• HF portable QRP stations
• Amateur radio field and SOTA operations
• Antenna impedance matching experiments

---

Build Concept

The UniBalun works by using a toroidal transformer wound onto the PCB footprint, with selectable jumper configurations determining whether the circuit functions as a Balun or UnUn. This allows a single PCB design to support multiple antenna matching roles depending on the build.

This modular approach reduces complexity and allows radio operators to experiment with different antenna systems using a single platform.

---

What’s Included

• UniBalun bare PCB (DG1JAN design)
• Solder pad layout for multiple configurations
• Build guidance (referencing official GitHub documentation)
