USDX PCB KIT 3 BAND SDR
uSDX TriBand SDR 3-Band QRP Transceiver PCB Kit based on Si5351 architecture. Supports SSB, CW, AM and digital modes with up to 5W output. Modular HF design with band-pass filtering and portable SOTA-ready construction.

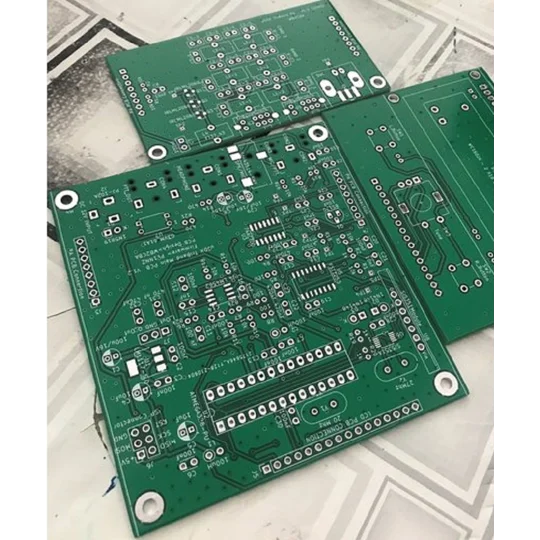

uSDX TriBand SDR – 3 Band All Mode QRP Transceiver PCB Kit
The uSDX TriBand SDR PCB Kit is a compact and highly efficient 3-band HF SDR transceiver platform designed for amateur radio operators seeking a lightweight, low-power, and fully functional QRP radio system. Based on the well-known uSDX architecture, this design delivers multi-mode operation in a simplified and modular construction suitable for portable and field use.
This kit provides the essential PCB foundation for building a complete all-mode HF transceiver, supporting popular digital and voice modes such as SSB, CW, AM, and digital modes (FT8/FT4 via external PC sound interface) depending on configuration.
The uSDX TriBand system is built around a modular architecture consisting of a main transceiver board, PA (power amplifier) stage, and band-pass filter system, enabling operation across three selectable HF bands. Band switching is achieved using a simplified hardware approach that keeps the design compact and efficient while maintaining reliable RF performance.
A key feature of this system is its Si5351-based frequency generation, providing stable and accurate signal synthesis across the operating range. The receiver and transmitter stages are optimized for low power QRP operation, typically delivering up to approximately 5 watts output depending on band and configuration.
The design philosophy follows a KISS (Keep It Simple Stupid) approach, making it accessible for experienced builders while still offering strong performance in portable and SOTA-style operations.
The PCB layout is designed for integration into a compact enclosure with front and rear panel mounting options, making it suitable for field deployment and backpacking radio setups.
Key Features
- 3-band HF uSDX SDR transceiver platform
- All-mode operation: SSB / CW / AM (digital via PC interface)
- Si5351 frequency synthesis system
- QRP power output up to ~5W (band dependent)
- Modular architecture (Main board + PA + LPF system)
- Compact SOTA/portable-friendly design
- Designed for USB/audio PC integration (SDR-style operation)
- Simple hardware-based band selection system
- Optimized for low power consumption and field use
- Based on proven uSDX open-source SDR architecture
System Overview
The uSDX TriBand operates as a hybrid SDR/QRP transceiver, where RF generation and processing are handled by the onboard hardware while digital modes and fine signal processing can be handled externally via a PC.
The system uses plug-in or switch-selected band-pass filters to isolate HF bands, ensuring efficient harmonic suppression and clean transmission. The Si5351 synthesizer provides stable multi-frequency generation for both transmit and receive paths.
The design is particularly suited for portable amateur radio operations, including SOTA (Summits On The Air), backpacking, and emergency communication setups.
Applications
- HF amateur radio operation (3-band portable rig)
- SOTA / POTA field communication
- QRP CW and SSB operation
- Digital modes (FT8 / FT4 via PC interface)
- Educational SDR and RF experimentation
- Compact travel HF radio setups
What’s Included
- uSDX TriBand PCB kit (multi-board system)
- Main transceiver PCB
- Power amplifier and filter stage PCB
- Optional front/rear panel PCB support (design dependent)
- Build documentation / schematic references
| Title | USDX PCB KIT 3 BAND SDR |
|---|---|
| Category | PCB Kits |
| SKU | Ovq7Ta8 |
| Condition | new |
| Weight | 90.0 g |
