Mini Whip Antenna

What is it?

The original PA0RDT Mini Whip is a very simple yet highly effective active receive antenna for the VLF, longwave (LW), medium wave (MW), and shortwave (SW) range. It consists of a small metal plate and a buffer amplifier.

How it works:

The amplifier features:

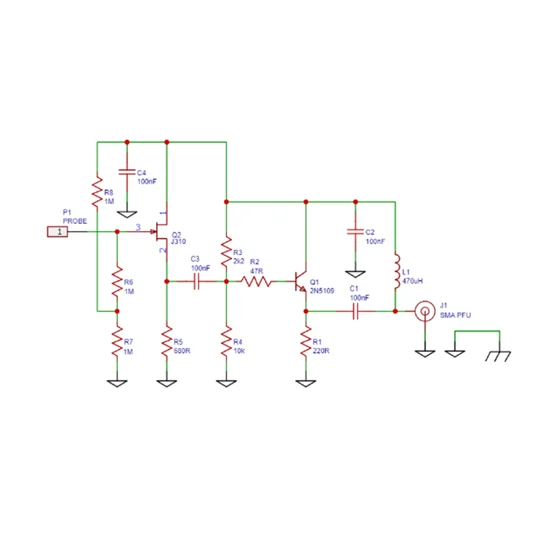

Very high input impedance – implemented using a JFET as a source follower, which senses the voltage between the small metal plate and ground

Low output impedance – implemented using an NPN transistor as an emitter follower, designed to drive 50 ohm coaxial cable

This design allows the antenna to perform exceptionally well even in electrically noisy environments or locations where space is limited.

Specifications:
Parameter Value
Application Radio reception only (not for transmitting)
Frequency range 10 kHz – 30 MHz (covers VLF, LW, MW, SW)
Power DC 5–13 V, 100 mA
RF connector SMA
Feed line 50 ohm coaxial cable
PCB material FR-4
PCB thickness 1.6 mm
PCB copper weight 1 oz

What makes it special?

Extremely compact – can be installed anywhere, even on a balcony, in an attic, or where no space for a full-size antenna is available

Powered design – performs reliably in all conditions; reception is very crisp and clean

Excellent for SDRs and shortwave receivers – ideal for amateur radio listeners (SWL), DXers, and hobbyists

Proven design – originally by PA0RDT, a well-respected active antenna circuit used worldwide

What's Included?

Choose your option:

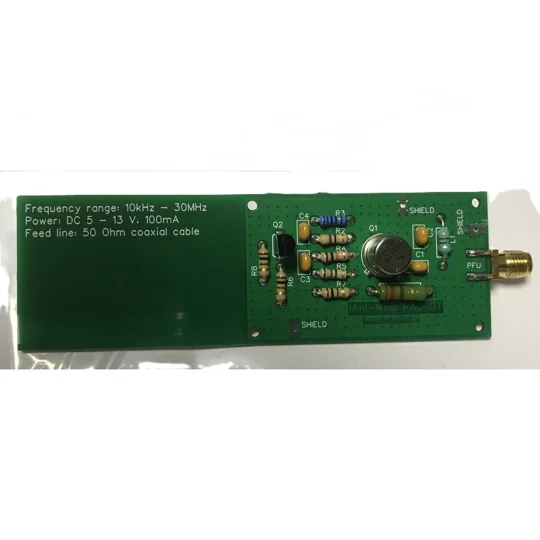

Assembled Unit – fully built, tested, and ready to install

PCB Only – bare board for DIY builders (components not included)

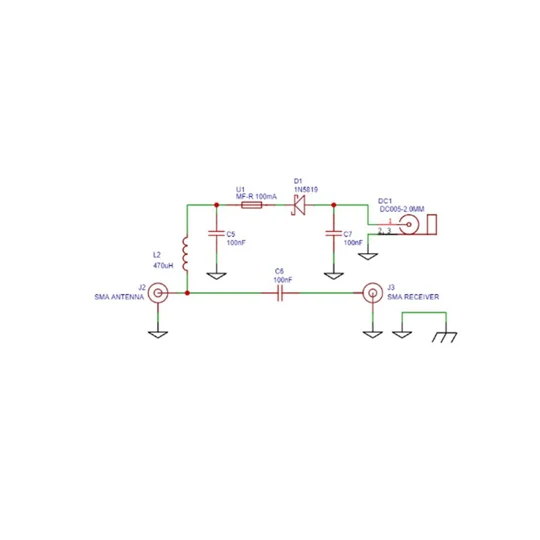

Power injector / bias tee, coaxial cable, power supply, and enclosure not included.
