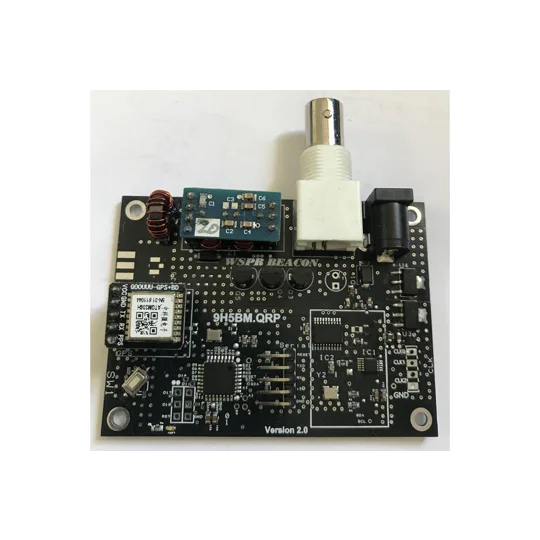

WSPR BEACON V2
WSPR Beacon V2 HF transmitter based on ATmega328 and Si5351 with 3 BS170 output stage delivering up to 5W on 20m. Includes full menu system for configuration. Ideal for WSPR propagation studies and HF beacon operation.
WSPR Beacon V2 – ATmega328 + Si5351 HF Beacon Transmitter (5W Output)
The WSPR Beacon V2 is a compact, high-efficiency HF weak signal propagation reporter (WSPR) transmitter designed for continuous or scheduled beacon operation. Built around the reliable ATmega328 AVR microcontroller and the precision Si5351 frequency synthesizer, this unit delivers stable, accurate RF output for long-term propagation studies and amateur radio experimentation.
The transmitter uses a 3 × BS170 MOSFET RF output stage, providing up to 5 watts output on 20 meters, making it suitable for reliable HF beacon coverage and worldwide WSPR signal reporting.
Designed with simplicity and flexibility in mind, the WSPR Beacon V2 includes a comprehensive menu system, allowing users to configure frequency, band selection, power settings, and beacon timing without external programming tools.
The Si5351 provides a stable, low-phase-noise signal source, ensuring accurate frequency generation across HF bands. It is driven by a 1ppm TCXO and solves the issues of drifting while in transmit mode. Combined with the ATmega328 control system, the beacon can be configured for autonomous operation, making it ideal for 24/7 propagation monitoring, antenna testing, and RF path analysis. It has a menu system accessible from the serial terminal and user can set the various options such as transmit interval, callsign,Selection of band, perform calibration etc..
This design is optimized for efficiency, low power consumption, and stable long-duration transmission, making it ideal for both fixed station and experimental setups.
Key Features
- ATmega328 AVR microcontroller control system
- Si5351 precision frequency synthesizer
- 1ppm TCXO
- 3 × BS170 MOSFET RF power amplifier stage
- Up to 5W RF output on 20m band (20M LPF Default) - other bands selectable in menu.
- Fully integrated WSPR beacon transmitter
- Comprehensive onboard menu system
- Stable HF frequency generation
- Designed for continuous long-term operation
- Compact and efficient RF design
- Suitable for automated propagation reporting
- 12Volts Power Input
Functionality
The WSPR Beacon V2 operates as a fully autonomous HF beacon transmitter. Users can configure:
- Operating band and frequency
- WSPR transmission schedule 3-7-10 minutes
- Power output reported settings (within design limits)
- Call sign (via menu system)
- Automatic grid configuration
Once configured, the system can run continuously, transmitting WSPR signals that are decoded globally by receiving stations, contributing to real-time HF propagation mapping.
Applications
- WSPR propagation studies
- HF antenna testing and comparison
- Solar and ionospheric research
- Amateur radio beacon operation
- Continuous HF signal monitoring
- Experimental RF transmission projects
Performance
The combination of the Si5351 frequency source and BS170 RF output stage ensures stable and efficient HF transmission. The 5W output on 20 meters provides strong signal reach for global reception under normal propagation conditions.
What’s Included
- Fully assembled WSPR Beacon V2 PCB
- ATmega328 + Si5351 control system
- BS170 RF output stage (3 MOSFETs)
- Preloaded firmware with menu system
| Title | WSPR BEACON V2 |
|---|---|
| Brand | JasonKits |
| Category | TRANSMITTERS |
| SKU | FDn7xXe |
| Condition | new |
| Weight | 90.0 g |
| HS Code | WSPRB00V2 |
| Country of Origin | Malta |
| MPN | WSPRBV2 |
